Differentiability¶
torch-fem is called torch-fem, because it is built on top of PyTorch - one of the most popular frameworks for machine learning applications.
This allows us to compute gradients easily and let them flow seamlessly through the FEM Solver - think of torch-fem as just another layer in your ML pipeline. This opens many opportunities:
- Combine Neural Networks and numerical solvers to train them together.
- Solving optimization tasks such as topology optimization, optimization of fiber orientations, or parameter identification.
- Formulate Hyperelastic materials by simply specifying the strain energy density function.
How differentiability is achieved¶
At its core, torch-fem keeps the full FEM pipeline in tensor form and uses torch operations wherever possible (assembly, constitutive updates, residual evaluation, loss construction). This guarantees that all local operations participate in PyTorch autograd and can be differentiated with .backward().
For the global sparse linear algebra and nonlinear equilibrium solves, torch-fem uses custom autograd operators with adjoint equations instead of unrolling all solver iterations in the computational graph.
Adjoint sparse linear solve¶
For a linear system $$ A(\theta)x = b(\theta), $$ the forward pass computes \(x\) with a non-differentiable sparse backend (for example SciPy, CuPy, or Pardiso). In the backward pass, given an upstream gradient \(\partial \mathcal{L}/\partial x\), we solve the adjoint system $$ A^\top\lambda = \partial \mathcal{L}/\partial x. $$ Then sensitivities follow from $$ \frac{\partial \mathcal{L}}{\partial b} = \lambda, \qquad \frac{\partial \mathcal{L}}{\partial A} = -\lambda x^\top $$ (restricted to the stored sparse entries).
This means gradients are obtained by one additional sparse solve, not by differentiating through each internal solver iteration.
Adjoint Newton-Raphson for nonlinear FEM¶
For nonlinear equilibrium, we solve at convergence $$ R(u, \theta) = 0, \qquad K = \frac{\partial R}{\partial u}. $$ Instead of differentiating through all Newton updates, we apply the implicit/adjoint relation at the converged state \(u^*\). For a scalar objective \(\mathcal{L}(u,\theta)\): $$ K^\top\lambda = \frac{\partial \mathcal{L}}{\partial u^*}, $$ and $$ \frac{d\mathcal{L}}{d\theta} = \frac{\partial \mathcal{L}}{\partial \theta} - \lambda^\top\frac{\partial R}{\partial \theta}. $$
Practically, this has two major benefits:
- Memory and runtime scale much better than backpropagating through every Newton and linear-solver iteration.
- The forward solver can use non-differentiable external sparse backends (SciPy/CuPy/Pardiso), while gradients remain correct through the adjoint equations.
In other words, the differentiable interface is preserved even when the numerical linear algebra backend itself is not natively differentiable.
Neural field example¶
Let's assume we have a graded property field, where the Young's modulus is prescribed as a function \(E : \mathbb{R}^2 \rightarrow \mathbb{R}\) on the domain \(\Omega \in [0, 2] \times [0, 1]\).
The function is given by $$ E(x) = 2 + \sin(\pi x_0) \cos(\pi x_1) $$

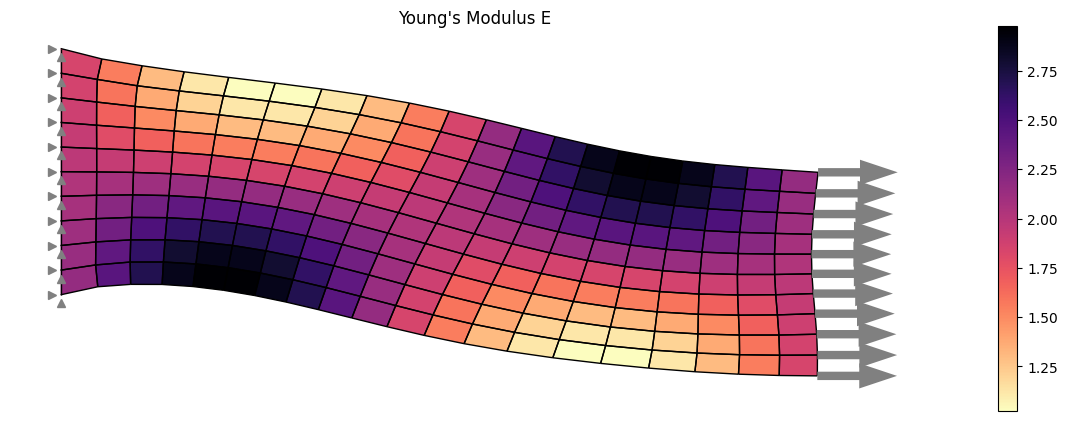

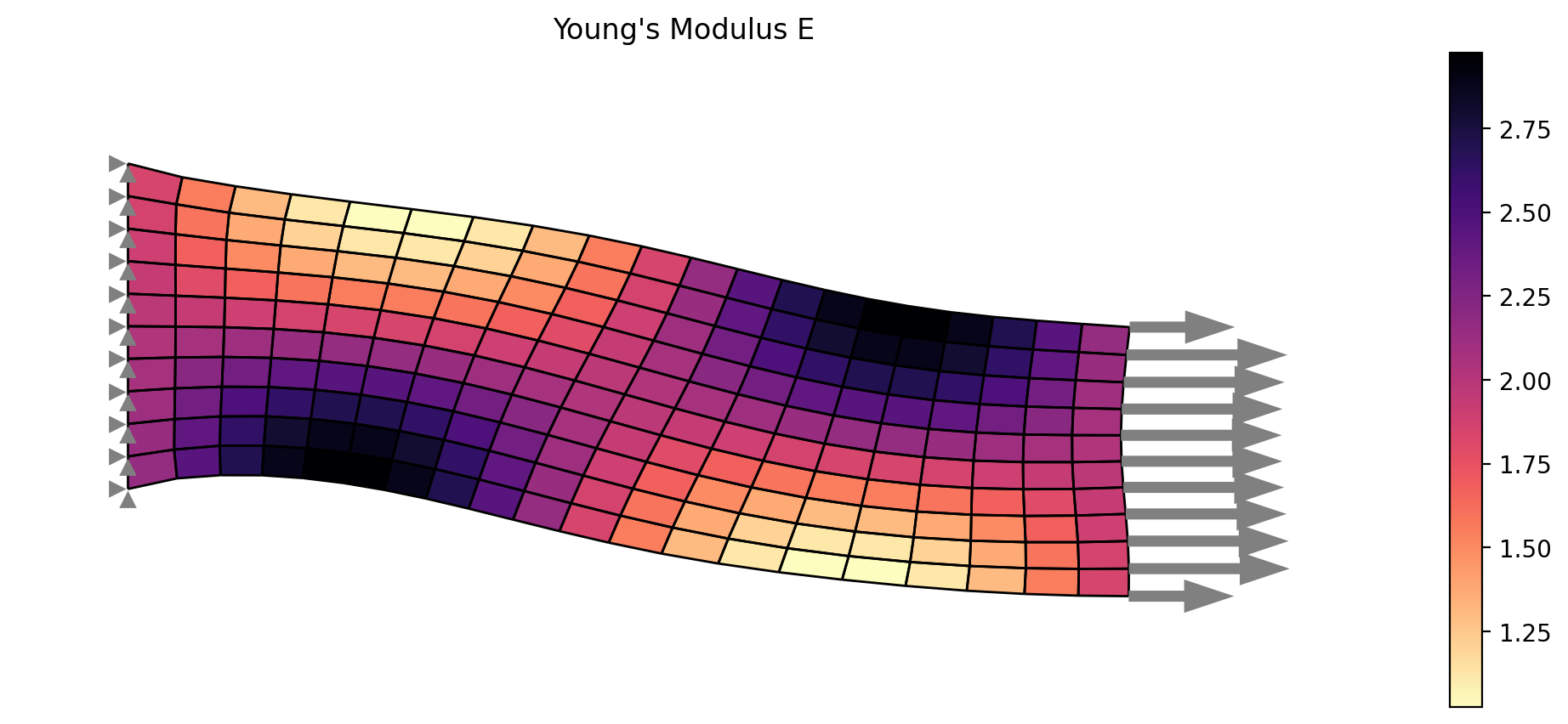

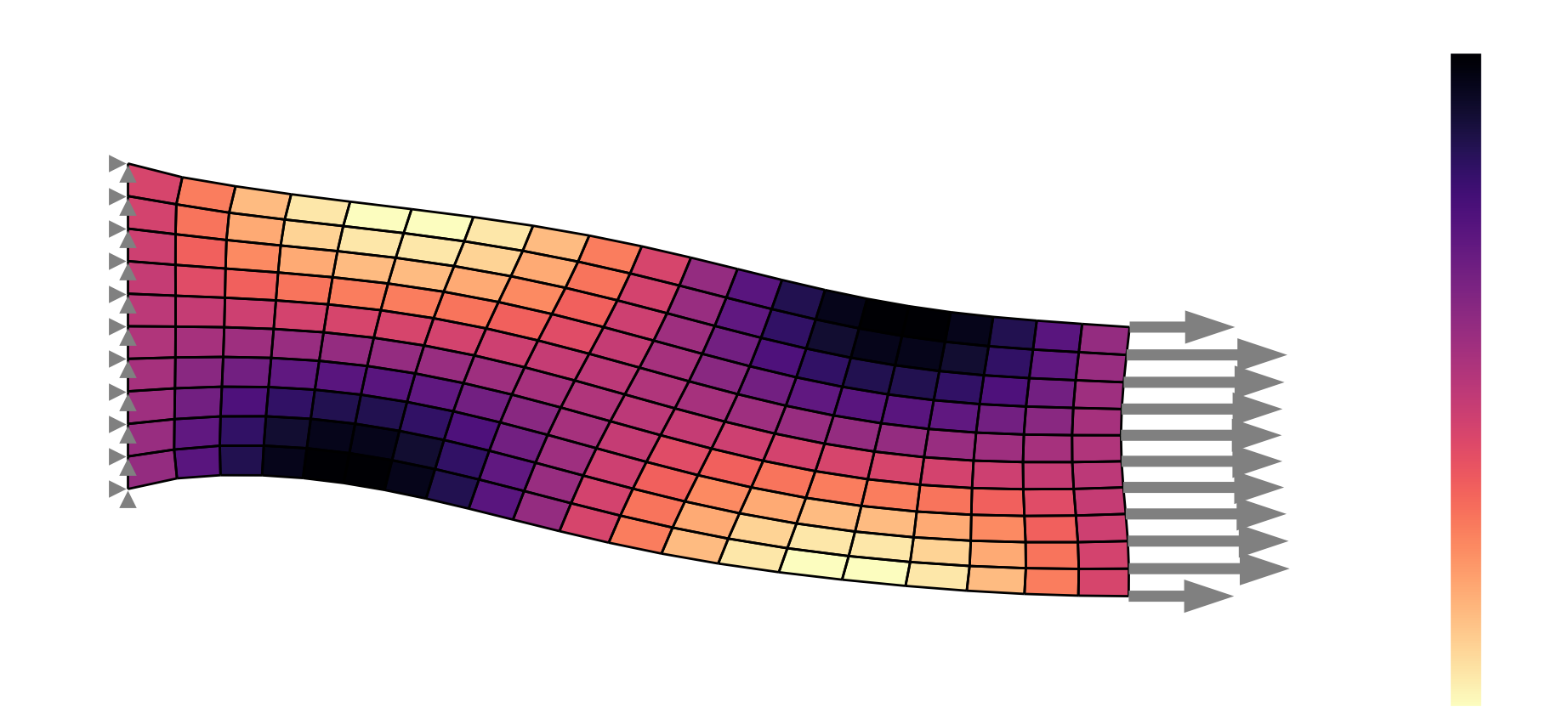

We solve the FEM problem with this exact field to get a synthetic ground truth of the deformation \(u_\textrm{ref}\):
Direct solution of the inverse problem¶

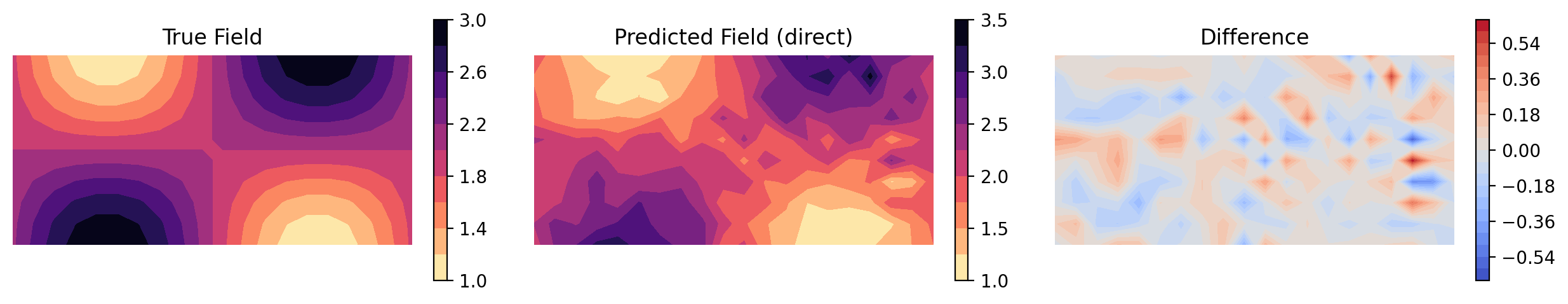

Let's solve the inverse problem now, i.e., we want to estimate the property field leading to the observed deformation field \(u_\textrm{ref}\). Hence, we solve

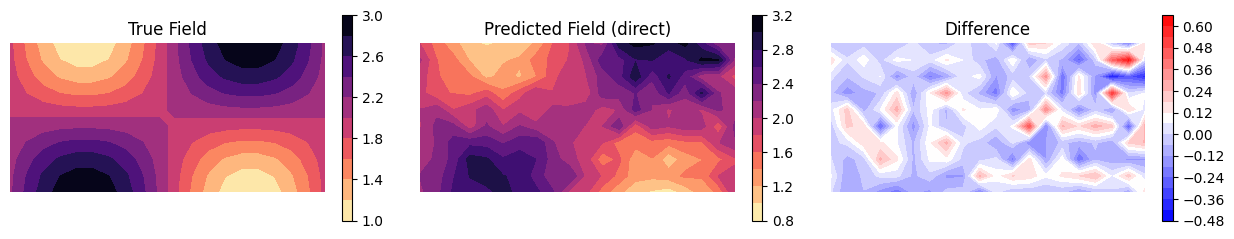

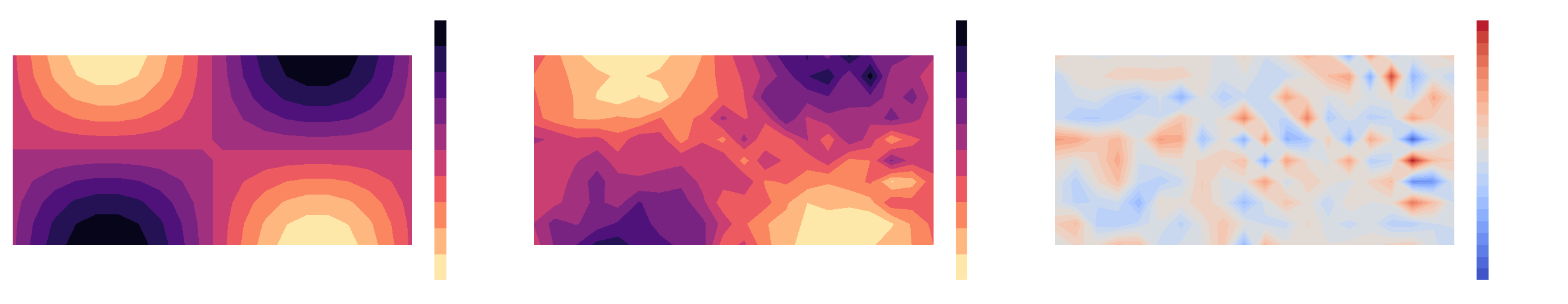

with the computed deformation field \(u\) given the modulus field \(E\) on elements and some observation noise \(u_\textrm{noise}\). We solve this problem directly by taking the modulus of each element as the design variable and performing a gradient descent with Adam. Note that this is only possible, because we can call .backward() on our loss function and compute the gradients via automatic differentiation.
Solution of the inverse problem with a neural field¶

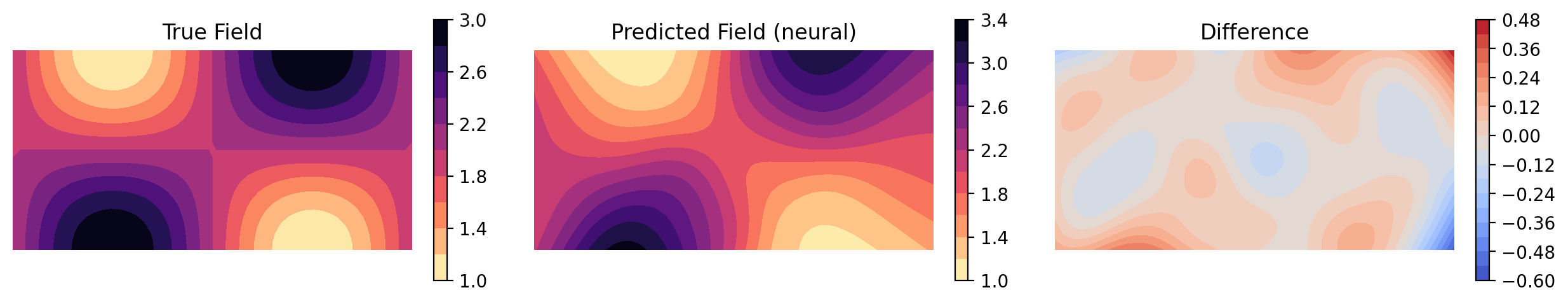

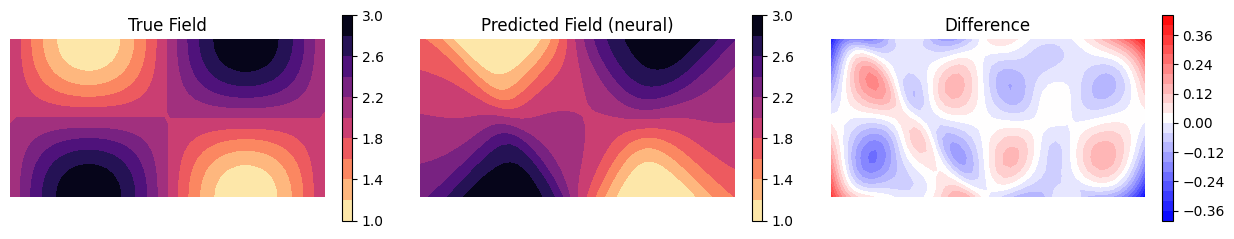

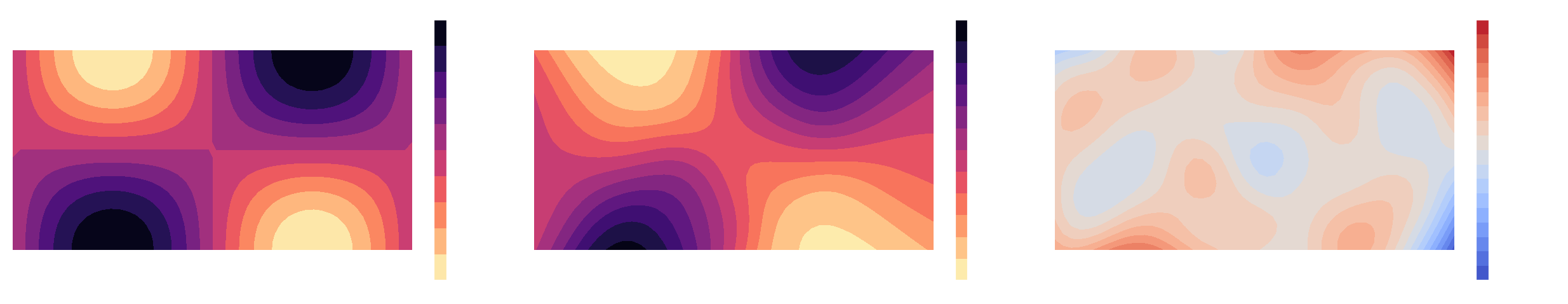

The previous attempt recovers the discrete distribution of the elastic modulus. However, it does not recover the continuous underlying function and is susceptible to noise. Therefore, we introduce a neural field as approximation to the continuous stiffness distribution, which is trained through the FE solver with noisy reference displacements.
The stiffness must be positive, in particular we know $$ E(x) > 1 \quad \forall x \in \Omega $$ a priori in this task. Therefore, we enforce this physical property in the NN design with a ReLU output activation layer and addition of a constant in the output layer.
Training the neural field takes more iterations in order to get to a comparable accuracy. However, the neural field regularizes the property field and gives a much smoother representation that is less susceptible to noise. This training strategy is only possible because gradients can flow seamlessly between FEM and neural network.
