Exercise 07 - Finite element method

We use finite elements to discretize a continuous domain and solve the linear elastic problem on this domain in this exercise.

import torch
from torchfem import Planar
from torchfem.materials import IsotropicElasticityPlaneStress

torch.set_default_dtype(torch.double)

Task 1 - Design

Design a planar structure with a single surface in a CAD Software of your choice. One option for such a CAD software could be Autodesk Fusion, which is free to use for students. Export the structure as "*.STEP" file and add a screenshot of your structure to this notebook.

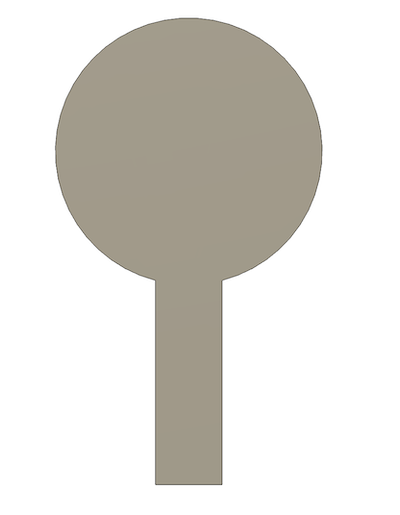

In this solution, we choose a simplified tree shape:

Task 2 - Mesh

To use FEM, we need to mesh the geometry. In this case, we use the open-source software gmsh to perform this task, which needs to be installed first. To do so, we activate our python environment via

    conda activate struct_opt

and install the package gmsh with

    pip install gmsh

Adapt the filename and mesh size in the following code to an appropriate value for your problem.

import gmsh

# Set gmsh options
size = 0.2
filename = "tree.step"

# Load the geometry and mesh it
gmsh.initialize()
gmsh.open(filename)
gmsh.option.setNumber("Mesh.MeshSizeFactor", size)
gmsh.model.mesh.generate(2)

# Get nodes
_, node_coords, _ = gmsh.model.mesh.getNodes()
nodes = torch.tensor(node_coords.reshape(-1, 3)[:, :2])

# Get elements
_, _, node_tags = gmsh.model.mesh.getElements(dim=2)
elements = torch.tensor((node_tags[0].reshape(-1, 3) - 1).astype(int))

# Define Material
material = IsotropicElasticityPlaneStress(E=1000.0, nu=0.3)

# Create the FEM model and visualize it
tree = Planar(nodes=nodes, elements=elements, material=material)
tree.plot(axes=True)

Info    : Reading 'tree.step'...
Info    :  - Label 'Shapes/(Unsaved)' (2D)
Info    :  - Color (0.627451, 0.627451, 0.627451) (2D & Surfaces)
Info    : Done reading 'tree.step'
Info    : Meshing 1D...
Info    : [  0%] Meshing curve 1 (Circle)
Info    : [ 30%] Meshing curve 2 (Line)
Info    : [ 60%] Meshing curve 3 (Line)
Info    : [ 80%] Meshing curve 4 (Line)
Info    : Done meshing 1D (Wall 0.000226458s, CPU 0.000238s)
Info    : Meshing 2D...
Info    : Meshing surface 1 (Plane, Frontal-Delaunay)
Info    : Done meshing 2D (Wall 0.0253445s, CPU 0.025165s)
Info    : 791 nodes 1584 elements

Task 3 - Boundary conditions

The Planar class has similar attributes to the known Truss class:

• forces: Nodal forces acting on nodes (float tensor with shape Nx2). Defaults to 0.0.
• constraints: Defines for each degree of freedom wether it is constrained (True) or not (False) (boolean tensor with shape Nx2). Defaults to False.
• displacements: Prescribed displacements at nodes (float tensor with shape Nx2). Defaults to 0.0

Think about a load case for your structure and apply appropriate boundary conditions.

# Fix the roots
roots = tree.nodes[:, 1] == 0.0
tree.constraints[roots, :] = True

# Apply a wind load at the crown
crown = tree.nodes[:, 1] >= 30.0
tree.forces[crown, 0] = 0.01

# Plot mesh and loads
tree.plot()

Task 4 - Solve and postprocessing

We solve the problem using the solve() function, which is already known from the Truss class. The function returns displacements at each node u, forces at each node f, the stress in each bar sigma, the deformation gradient F, and a state variable state. In this lecture, we can ignore the deformation gradient (useful for large non-linear deformations) and the state (useful for non-linear materials like plasticity).

u, f, sigma, F, state = tree.solve()

a) Plot the deformed shape with color indicating the displacement magnitude.

# Turn off forces for visualization
tree.forces[:] = 0.0

tree.plot(
    u=u,
    node_property=torch.linalg.norm(u, dim=1),
    colorbar=True,
    cmap="plasma",
    title="Displacement magnitude",
)

b) Compute the v. Mises stress and plot it on the deformed shape with color indicating the stress.

mises = torch.sqrt(
    sigma[:, 0, 0] ** 2
    - sigma[:, 0, 0] * sigma[:, 1, 1]
    + sigma[:, 1, 1] ** 2
    + 3 * sigma[:, 1, 0] ** 2
)

tree.plot(
    u=u,
    element_property=mises,
    colorbar=True,
    cmap="viridis",
    title="Von Mises stress",
)
